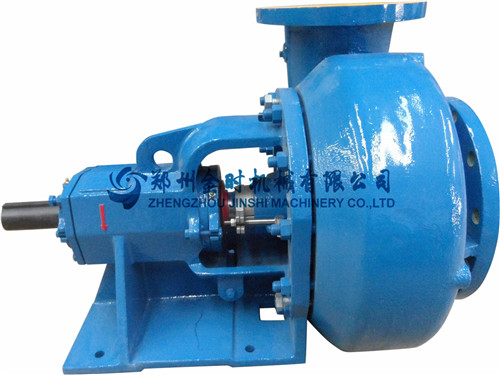

JDSB10×8×14 pump

Time:2019-05-07

1. Usage and Application Range

JDSB series centrifugal sand pump includes virtually all of the features of the JDSB series pumps.JDSB series pumps are more compact in design and can be adapted for hydraulic motor drive.These features make .JDSB series pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for water well drilling applications.

All parts for these pumps are identical to the JDSB series pump except for the frame and shaft.The frame and shaft have been shortened 4" to reduce the length of the pump.When space is a premium and prime mover options are limited, the JDSB series pump is the pump of choice.

There are 8 models for choosing,JDSB3×2×13,JDSB4×3×13,JDSB5×4×14,JDSB6×5×11,JDSB6×5×14,JDSB8×6×11,JDSB8×6×14

and JDSB10×8×14.

2. Pump Features

The Series Centrifugal Sand Pump has these features:

(1) Open impeller,apply to transport high viscosity drilling liquid.

(2) Combination seal for a long service life.

(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.

(4) The major parts are made from antiwear nodular iron,and long service life.

3. Parameters

Model

JDSB10×8×14

JDSB8×6×14

JDSB8×6×11

JDSB6×5×14

JDSB6×5×11

JDSB5×4×14

JDSB4×3×13

JDSB3×2×13

Discharge capacity

260300 m3/h

240260 m3/h

220240 m3/h

200220 m3/h

120200 m3/h

80120 m3/h

6080 m3/h

5060m3/h

Pump Head

28~33

2833m

2428m

2428m

2428m

2428m

2228m

2228m

Efficiency

65%

65%

65%

65%

65%

65%

65%

65%

Motor power

75/90 kW

55/75 kW

37/45 kW

37/45/55 kW

30/37/45 kW

18.5/22/30   kW

11/15 kW

7.5/11 kW

Motor speed

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

Inlet diameter

10″

8″

8″

6″

6″

5″

4″

3″

Outlet diameter

8″

6″

6″

5″

5″

4″

3″

2″
